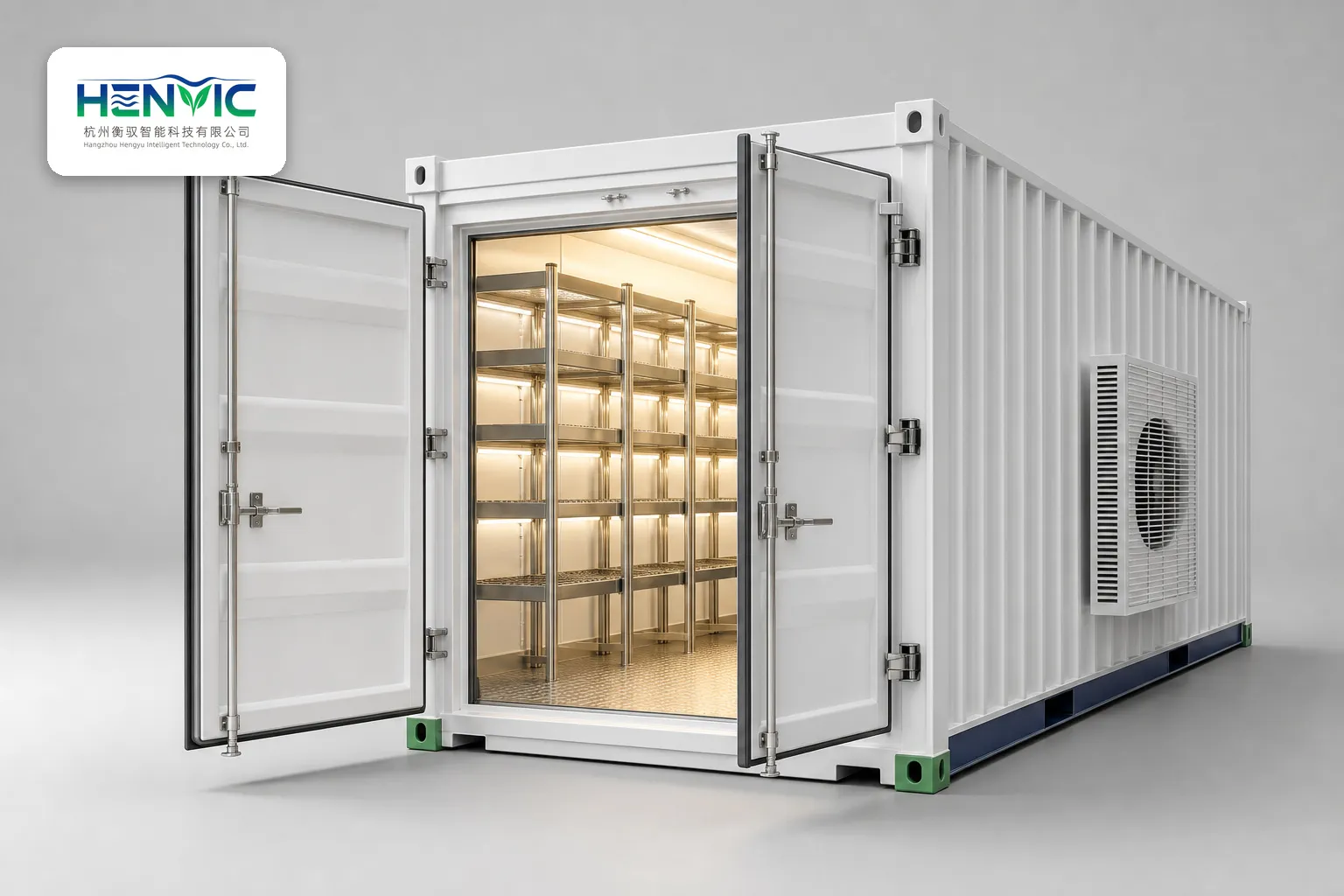

Porcini Mushroom Cultivation Container Model：HVC-M2E

HVC-M2E 牛肝菌培育集装箱 · 智能旗舰型

1. Product Overview

Porcini demands very stable temperature and humidity and is highly vulnerable to contamination. This model uses filtered positive-pressure air supply and a double-end-door layout to hold temperature within +/-0.5 degC while sharply reducing the spore and contaminant ingress that normally occurs during door opening.

二、核心优势 / 2. Key Advantages

• Filtered positive-pressure air supply that sharply cuts contaminant ingress during door opening

• Temperature held within +/-0.5 degC and humidity within +/-3% RH

• Double-end-door layout creating a straight-line logistics path for loading and harvesting

• Adjustable shelf pitch to suit bag or bottle cultivation formats

三、技术参数 / 3. Technical Specifications

项目 / Item	参数 / Specification
型号 / Model	HVC-M2E
外形尺寸 / Dimensions	12000 × 2438 × 2896 mm（40 尺标准箱）  /  12000 x 2438 x 2896 mm (40 ft ISO container)
有效栽培面积 / Effective cultivation area	50–65 m²  /  50-65 m2
层架配置 / Rack configuration	4–5 层不锈钢出菇架，配自动巡检接口  /  4-5 tier stainless racks with automatic inspection interface
温度控制范围 / Temperature range	18-24 ℃ (±0.5 ℃)  /  18-24 degC (+/-0.5 degC)
相对湿度 / Relative humidity	85-90% RH
CO₂ 浓度 / CO₂ concentration	800-1500 ppm
光照 / Lighting	0-400 lux（可调 / adjustable）
栽培周期 / Cultivation cycle	70–100 天  /  70-100 days
装机功率 / Installed power	14–18 kW  /  14-18 kW
电源 / Power supply	380 V / 50 Hz 三相（可按目的国电压定制）  /  380 V / 50 Hz, 3-phase (customisable to destination-country voltage)
箱体传热系数 / Enclosure U-value	≤0.30 W/(m²·K)  /  <= 0.30 W/(m2.K)
控制系统 / Control system	全自动控制 + 云端数据平台 + AI 配方自学习 + 手机 APP  /  Fully automatic control with cloud data platform, self-learning AI recipes and a mobile app
主栽品种 / Primary species	牛肝菌（Boletus edulis）  /  Porcini Mushroom (Boletus edulis)



四、系统配置 / 4. System Configuration

Standard configuration: Double-end doors with sealing gaskets, combined temperature/humidity unit, pre-filter plus medium-efficiency filtered air supply, ultrasonic humidifier, adjustable fruiting racks, washdown floor drainage, intelligent control cabinet and data logging module.

Enclosure and integration: 12000 x 2438 x 2896 mm (40 ft ISO container); racks: 4-5 tier stainless racks with automatic inspection interface; control: Fully automatic control with cloud data platform, self-learning AI recipes and a mobile app.

五、适用品种 / 5. Suitable Species

Primary species: Porcini Mushroom (Boletus edulis). Cultivation method: substrate bags, optionally with mycorrhizal co-culture substrate. For mycorrhizal co-culture trials, optional root observation windows and substrate temperature-control coils are available.

六、适用场景 / 6. Application Scenarios

Mid- and high-end mushroom factories, export-oriented production bases, and supporting grow-rooms for under-forest economy projects. This is the Smart Flagship configuration; Unattended operation with full parameter traceability; suits multi-site remote management.

七、交付与安装 / 7. Delivery & Installation

• Factory: the enclosure, refrigeration unit, piping and electrical systems are assembled and bench-tested in our factory, followed by a 96-hour continuous operation test, with a test record supplied with the shipment.

• Transport: the enclosure matches standard ISO container dimensions and can be shipped as ordinary container cargo under FOB, CIF or DAP terms.

• On site: our engineers or authorised partners provide positioning guidance, utility connection, commissioning and operator training, normally within 5 working days.

• Deliverables: the complete unit, printed and electronic bilingual operation manuals, a PLC programme backup, crop parameter recipes, and the factory test report.

八、售后服务 / 8. After-Sales Service

• Warranty: 12 months on the complete unit from acceptance, with optional extended coverage for the core refrigeration unit and control system.

• Response: repairs acknowledged within 24 hours on business days, with a solution proposed within 72 hours for critical faults.

• Remote operations: remote diagnostics, recipe and parameter upgrades, data dashboards and energy analysis (standard on the Smart Flagship configuration, optional on the others).

• Spare parts and upgrades: long-term supply of genuine parts, filters and consumables, plus control-system and technology upgrades.

• Training and cultivation support: operator, maintenance and cultivation-process training, with continuously updated crop parameter packs.
